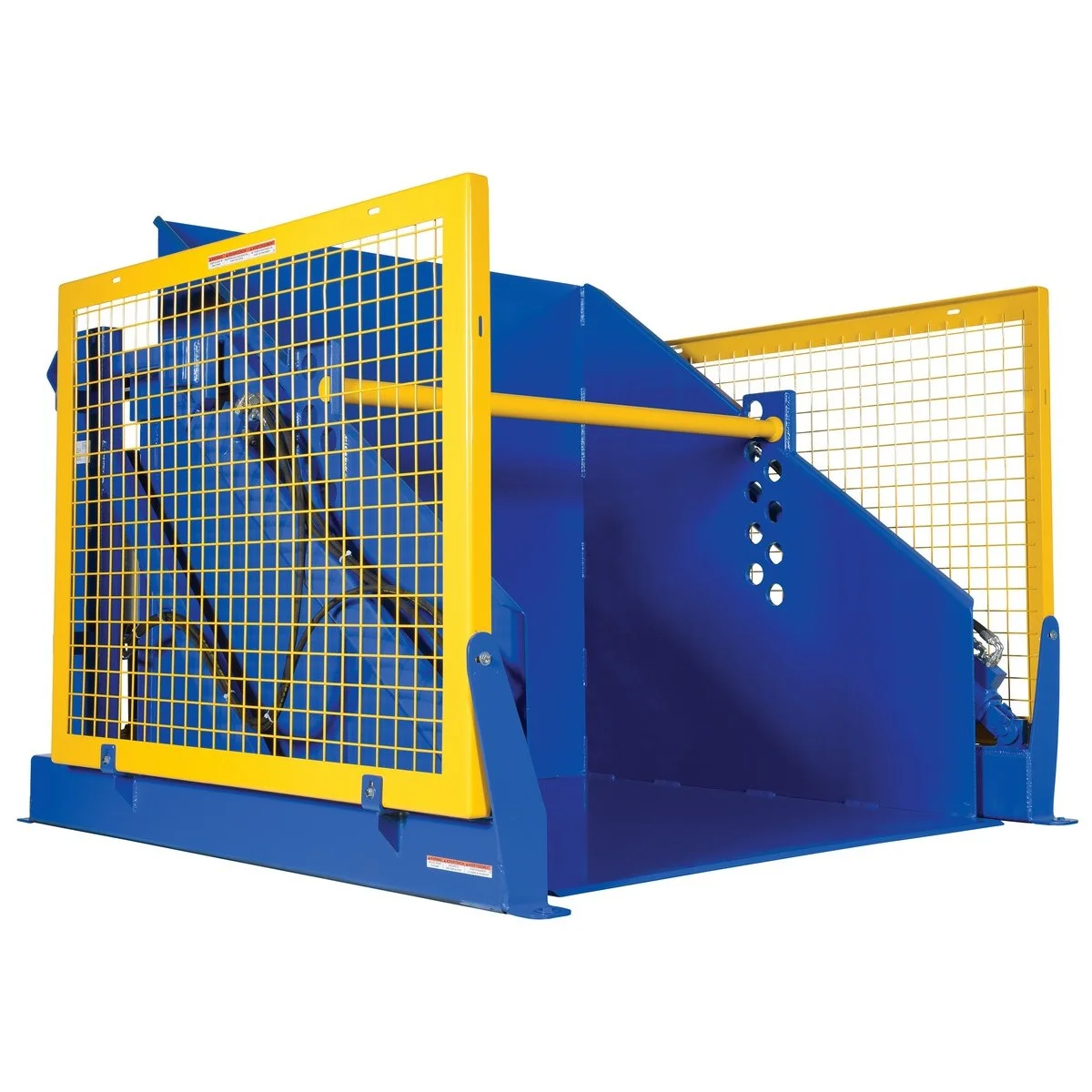

Steel Electric Hydraulic Box Dumper 36 In. Dump Height 6,000 Lb. Capacity Blue

SKU: HBD-6-36

Fast Shipping

Fast Reliable On Time

Accurate Products

Engineered for Perfection

24/7 Support

Unlimited help desk

Additional information
Weight 2003 lbs
Dimensions 68.5 × 69 × 53.5 in
Brand

VESTIL

Description

Uniform Capacity (lb.): 6000 Dump Height (in.): 36 Rotated Height (in.): 111
Lowered Height (in.): 3/8 Usable Chute Width/Length (in.): 52 x 50 Chute Reach at Full Rotation (in.): 10
Hold Downs (in.): 18 to 36 Maximum Rotation Travel (degree): 135 Dump Angle (degree): 45
Motor Horsepower: 5.5 Voltage: 460/3 Phase Maximum Duty Cycle Starts Per Hour: 15
Hand Held Control (volts): 24 Hand Held Control Length (ft.): 8 Standard Output: AC
Cord Length (ft.): 2
