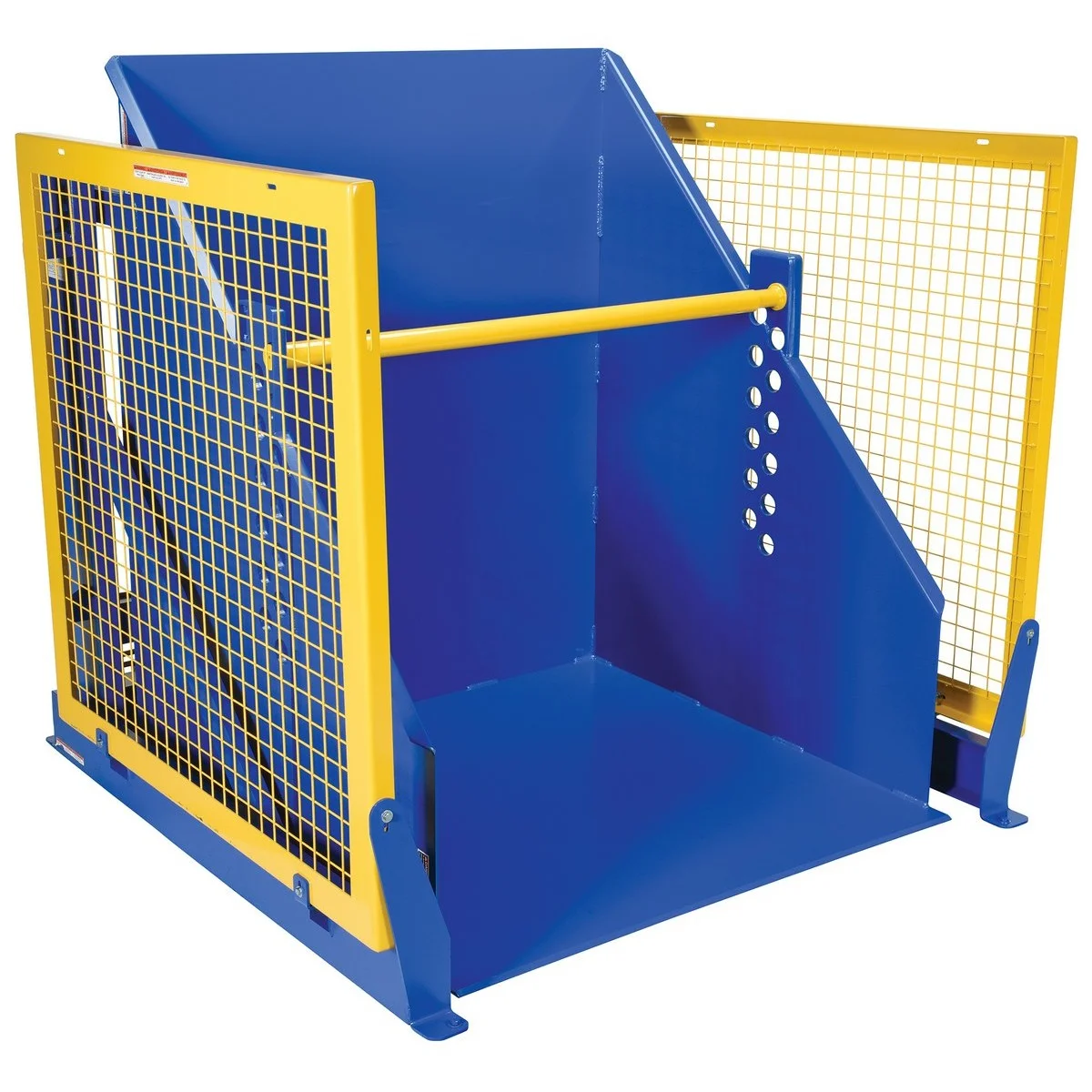

Steel Electric Hydraulic Box Dumper 48 In. Dump Height 4,000 Lb. Capacity Blue

VESTIL
SKU: HBD-4-48

Universal design will dump contents of many types and sizes of containers 135 Degrees maximum rotation travel may be stopped at any point during the dump cycle Complete electric/hydraulic power unit to rotate chute at the push of a button Safety mesh screens included on each side of unit for added safety

Add to wishlist

Fast Shipping

Fast Reliable On Time

Accurate Products

Engineered for Perfection

24/7 Support

Unlimited help desk

Additional information
Weight 1970 lbs
Dimensions 68.5 × 69 × 65 in
Brand

VESTIL

Description

Uniform Capacity (lb.): 4000 Dump Height (in.): 48 Rotated Height (in.): 129-1/2
Lowered Height (in.): 3/8 Usable Chute Width/Length (in.): 52 x 50 Chute Reach at Full Rotation (in.): 10
Hold Downs (in.): 18 to 42 Maximum Rotation Travel (degree): 135 Dump Angle (degree): 45
Motor Horsepower: 2 Voltage: 460/3 Phase Maximum Duty Cycle Starts Per Hour: 15
Hand Held Control (volts): 24 Hand Held Control Length (ft.): 8 Standard Output: AC
Cord Length (ft.): 2
