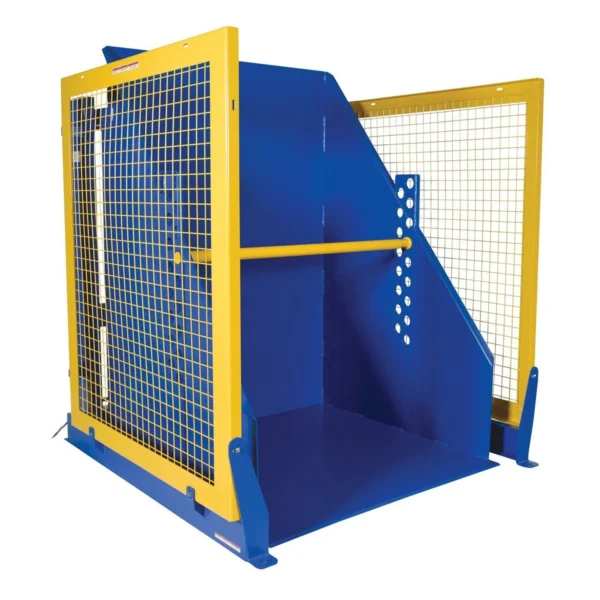

Steel Electric Hydraulic Box Dumper 36 In. Dump Height 4,000 Lb. Capacity Blue

VESTIL
SKU: HBD-4-36

Universal design will dump contents of many types and sizes of containers 135 Degrees maximum rotation travel may be stopped at any point during the dump cycle Complete electric/hydraulic power unit to rotate chute at the push of a button Safety mesh screens included on each side of unit for added safety

Add to wishlist
Box Dumper in

Fast Shipping

Fast Reliable On Time

Box Dumper in

Accurate Products

Engineered for Perfection

Box Dumper in

24/7 Support

Unlimited help desk

Additional information
Weight 1721 lbs
Dimensions 68.5 × 69 × 53.5 in
Brand

VESTIL

Description

Uniform Capacity (lb.): 4000 Dump Height (in.): 36 Rotated Height (in.): 111
Lowered Height (in.): 3/8 Usable Chute Width/Length (in.): 52 x 50 Chute Reach at Full Rotation (in.): 10
Hold Downs (in.): 18 to 36 Maximum Rotation Travel (degree): 135 Dump Angle (degree): 45
Motor Horsepower: 2 Voltage: 460/3 Phase Maximum Duty Cycle Starts Per Hour: 15
Hand Held Control (volts): 24 Hand Held Control Length (ft.): 8 Standard Output: AC
Cord Length (ft.): 2
