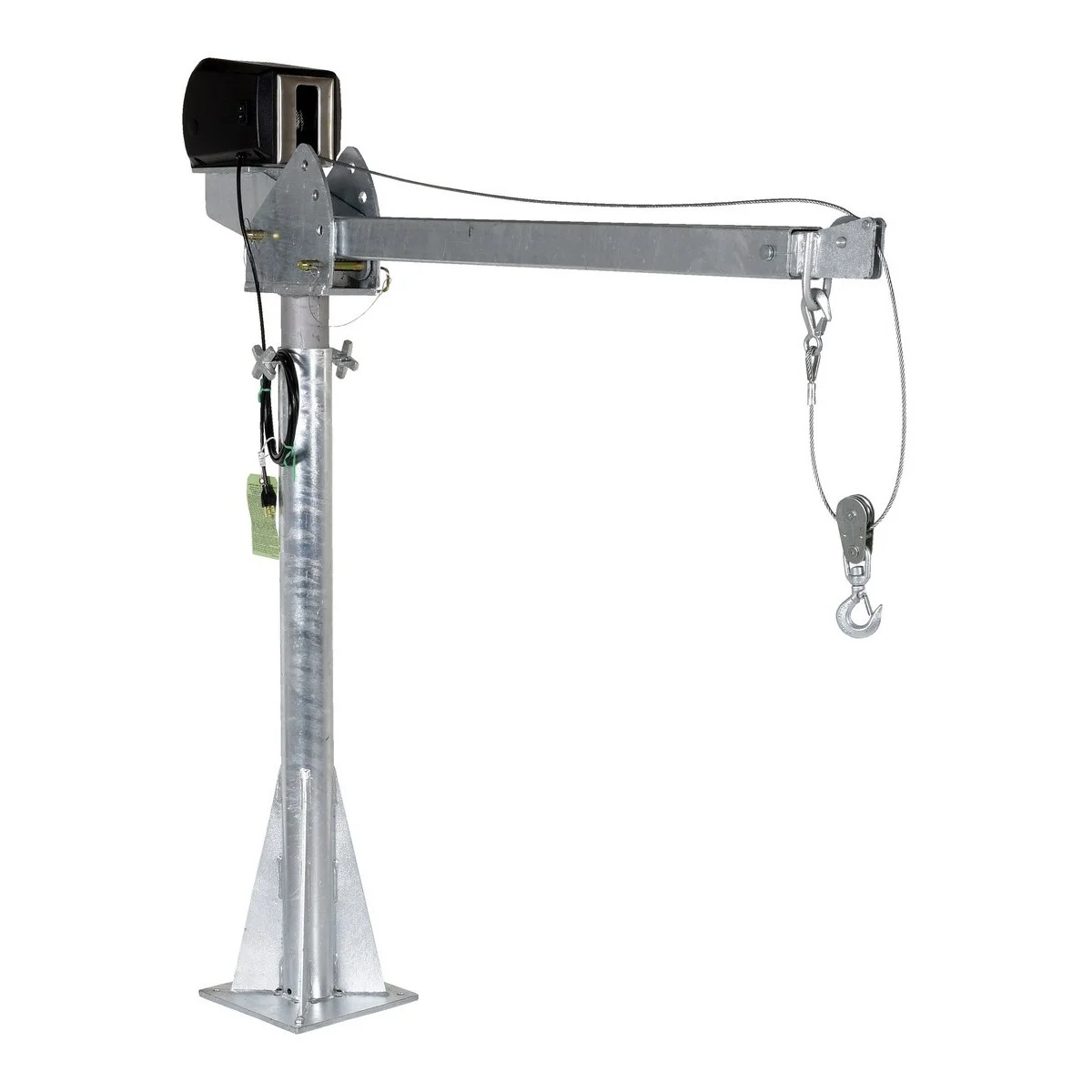

Galvanized Steel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Gray

VESTIL
SKU: WTJ-20-4-AC-GAL

The galvanized Steel AC Powered Jib Crane with a 4 to 7 feet boom is designed for the most flexible and efficient handling of material. With a capacity of 2,000 pounds this crane provides reliable lifting performance that can be used for a diverse variety of workplace tasks. The boom is adjustable, allowing users to choose the reach needed for various lifting tasks. The 360 degree swivel design enhances accessibility and mobility. A cable winch powered by electricity helps to lift and position load easier, reducing the amount of manual work. Built from sturdy galvanized steel this model has been made for harsh working conditions. With 115 V AC motor and mounting plate that is pre drilled makes it an ideal option for industrial and workshops.

Add to wishlist
Galv Steel AC

Fast Shipping

Fast Reliable On Time

Galv Steel AC

Accurate Products

Engineered for Perfection

Galv Steel AC

24/7 Support

Unlimited help desk

Additional information
Weight 294 lbs
Dimensions 65.375 × 12 × 70.0625 in
Color

Gray

Brand

VESTIL

Description

Uniform Capacity (lb.): 2,000Boom Reach (in.): 51-1/4 to 87-1/4Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360Boom Adjustment Increments (in.): 12Cable Length (ft.): 25
Cable Diameter (in.): 7/32AC (volts): 115Horsepower (HP): 1/3
Mounting Plate Length (in.): 12Mounting Plate Width (in.): 12Capacity at 59-1/2″ Fully Retracted (lbs.): 1,100
Capacity at 59-1/2″ Second Position (lbs.): 800Capacity at 59-1/2″ Third Position (lbs.): 600Capacity at 59-1/2″ Fully Extended (lbs.): 250
Capacity at 78-1/4″ Fully Retracted (lbs.): 1,500Capacity at 78-1/4″ Second Position (lbs.): 1,200Capacity at 78-1/4″ Third Position (lbs.): 1,000
Capacity at 78-1/4″ Fully Extended (lbs.): 600Capacity at 94-1/2″ Fully Retracted (lbs.): 1,850
