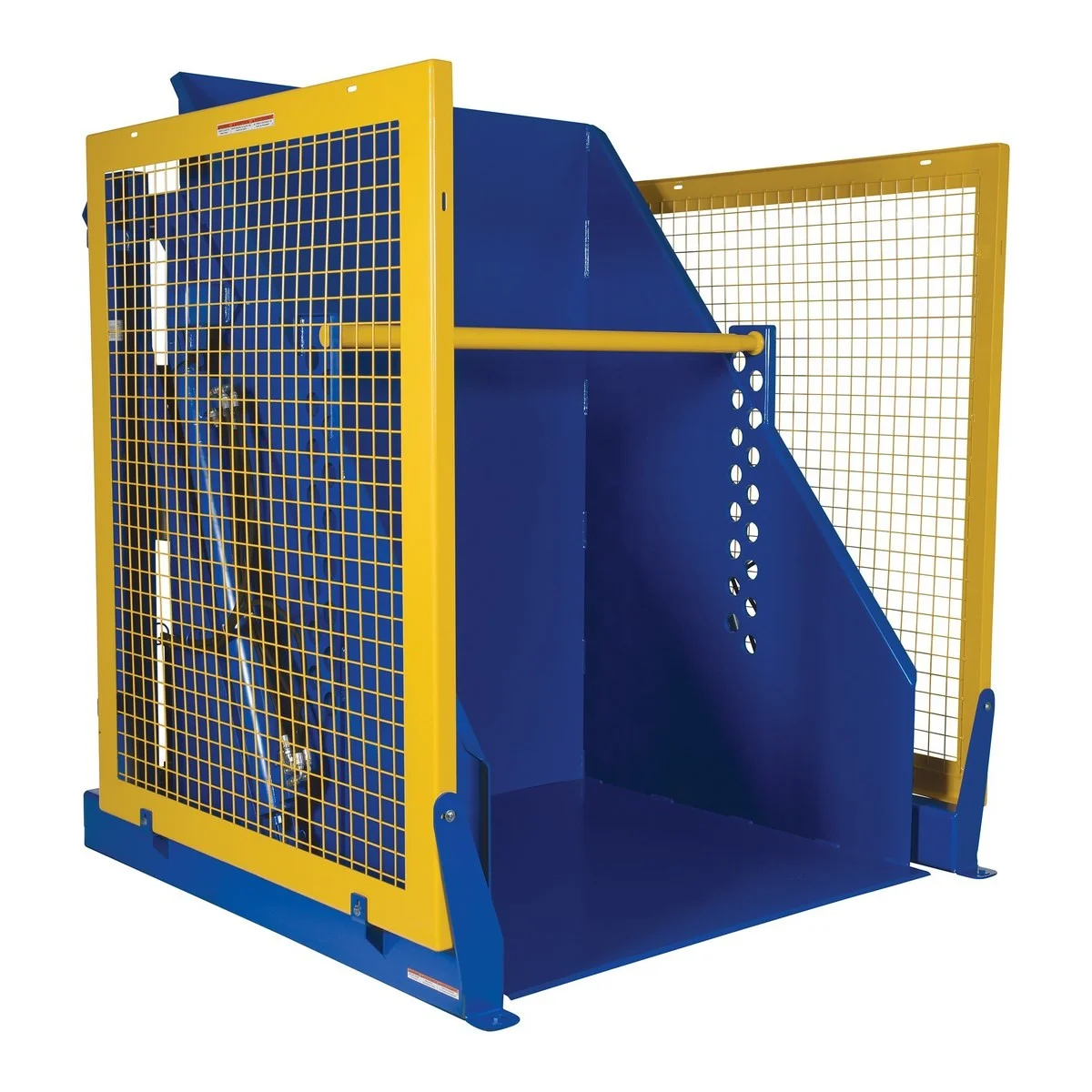

Steel Electric Hydraulic Box Dumper 60 In. Dump Height 6,000 Lb. Capacity Blue

VESTIL
SKU: HBD-6-60

Universal design will dump contents of many types and sizes of containers 135 Degrees maximum rotation travel may be stopped at any point during the dump cycle Complete electric/hydraulic power unit to rotate chute at the push of a button Safety mesh screens included on each side of unit for added safety

Add to wishlist
Box Dumper in

Fast Shipping

Fast Reliable On Time

Box Dumper in

Accurate Products

Engineered for Perfection

Box Dumper in

24/7 Support

Unlimited help desk

Additional information
Weight 2227 lbs
Dimensions 68.5 × 69 × 77 in
Brand

VESTIL

Description

Uniform Capacity (lb.): 6000Dump Height (in.): 60Rotated Height (in.): 149-1/2
Lowered Height (in.): 3/8Usable Chute Width/Length (in.): 52 x 50Chute Reach at Full Rotation (in.): 10
Hold Downs (in.): 18 to 50Maximum Rotation Travel (degree): 135Dump Angle (degree): 45
Motor Horsepower: 5.5Voltage: 460/3 PhaseMaximum Duty Cycle Starts Per Hour: 15
Hand Held Control (volts): 24Hand Held Control Length (ft.): 8Standard Output: AC
Cord Length (ft.): 2
