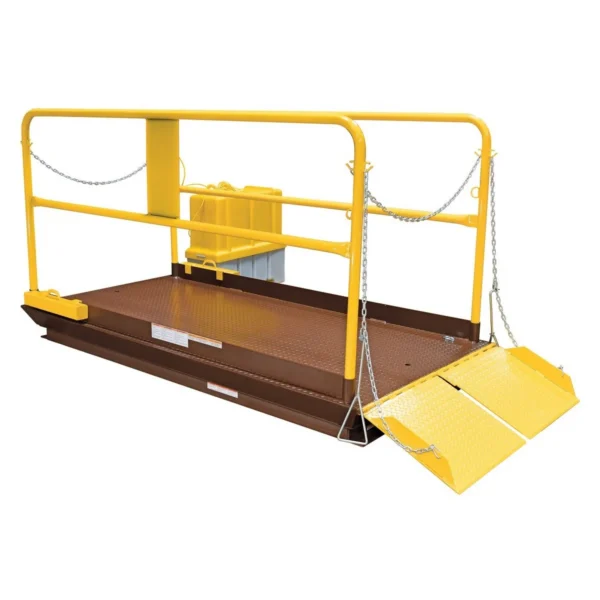

Steel Premium Truck Scissor Dock Lift 7 In. x 10 In. 8,000 Lb. Capacity Brown/Yellow

VESTIL
SKU: WL-100-8-710

Unique design services semi-trailers when loading dock is unavailable Tread plate surface provides a safe non-slip grip Safety velocity fuses protect the hydraulic cylinders Upper travel limit switch cuts power to unit when max raised height is reached

Add to wishlist
Dock Lift lb

Fast Shipping

Fast Reliable On Time

Dock Lift lb

Accurate Products

Engineered for Perfection

Dock Lift lb

24/7 Support

Unlimited help desk

Additional information
Weight 4463 lbs
Dimensions 138 × 84 × 55 in
Color

Brown/Yellow

Brand

VESTIL

Description

Uniform Capacity (lb.): 8000Overall Frame Width (in.): 62Overall Frame Length (in.): 118
Platform Length (in.): 120Platform Width (in.): 84Lowered Height (in.): 10
Raised Height (in.): 70Push Button Coil Cord Length (ft.): 4-20External Motor Horsepower: 6.5
External Motor Voltage/Phase: 460/3Motor Hertz: 60Motor Weight (lbs.): 300
Axle Side Load Capacity (lbs.): 5250Axle End Load Capacity (lbs.): 6250Handrail Height (in): 45
Handrail Midrail Height (in): 21Toeboard Height (in): 4Beveled Toe Guard (in): 5
Platform Type: TreadplatePlatform Thickness (in.): 1/4
