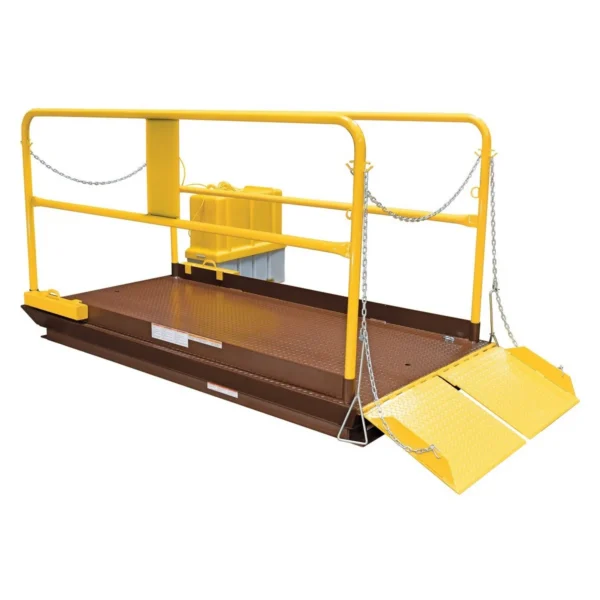

Steel Premium Truck Scissor Dock Lift 7 In. x 12 In. 10,000 Lb. Capacity Brown/Yellow

VESTIL
SKU: WL-100-10-712

Unique design services semi-trailers when loading dock is unavailable Tread plate surface provides a safe non-slip grip Safety velocity fuses protect the hydraulic cylinders Upper travel limit switch cuts power to unit when max raised height is reached

Add to wishlist
Dock Lift lb

Fast Shipping

Fast Reliable On Time

Dock Lift lb

Accurate Products

Engineered for Perfection

Dock Lift lb

24/7 Support

Unlimited help desk

Additional information
Weight 6240 lbs
Dimensions 162 × 84 × 59 in
Color

Brown/Yellow

Brand

VESTIL

Description

Uniform Capacity (lb.): 10000Overall Frame Width (in.): 62Overall Frame Length (in.): 118
Platform Length (in.): 144Platform Width (in.): 84Lowered Height (in.): 14
Raised Height (in.): 72Push Button Coil Cord Length (ft.): 4-20External Motor Horsepower: 6.5
External Motor Voltage/Phase: 460/3Motor Hertz: 60Motor Weight (lbs.): 300
Axle Side Load Capacity (lbs.): 7000Axle End Load Capacity (lbs.): 8250Handrail Height (in): 45
Handrail Midrail Height (in): 21Toeboard Height (in): 4Beveled Toe Guard (in): 5
Platform Type: TreadplatePlatform Thickness (in.): 1/4
