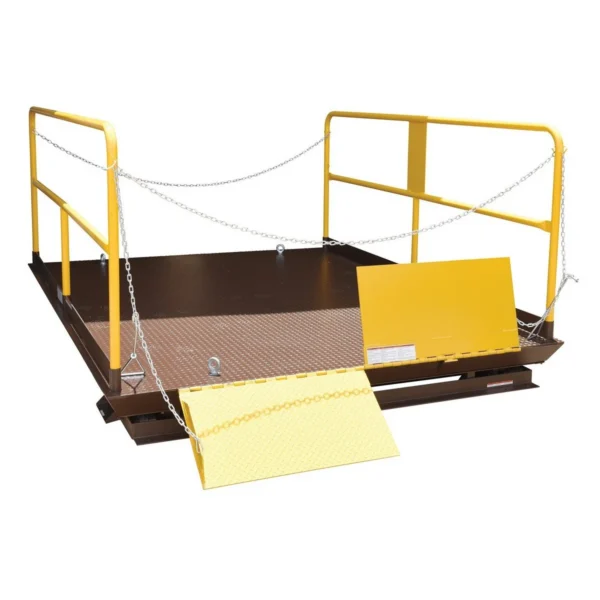

Steel Premium Truck Scissor Dock Lift 8 In. x 8 In. 6,000 Lb. Capacity Brown/Yellow

VESTIL
SKU: WL-100-6-88

Unique design services semi-trailers when loading dock is unavailable Tread plate surface provides a safe non-slip grip Safety velocity fuses protect the hydraulic cylinders Upper travel limit switch cuts power to unit when max raised height is reached

Add to wishlist

Fast Shipping

Fast Reliable On Time

Accurate Products

Engineered for Perfection

24/7 Support

Unlimited help desk

Additional information
Weight 3717 lbs
Dimensions 114 × 96 × 55 in
Color

Brown/Yellow
Brand

VESTIL

Description

Uniform Capacity (lb.): 6,000 Overall Frame Width (in.): 86 Overall Frame Length (in.): 93
Platform Length (in.): 96 Platform Width (in.): 96 Lowered Height (in.): 10
Raised Height (in.): 70 Push Button Coil Cord Length (ft.): 4-20 External Motor Horsepower: 6.5
External Motor Voltage/Phase: 460/3 Motor Hertz: 60 Motor Weight (lbs.): 300
Axle Side Load Capacity (lbs.): 3200 Axle End Load Capacity (lbs.): 4500 Handrail Height (in): 45
Handrail Midrail Height (in): 21 Toeboard Height (in): 4 Beveled Toe Guard (in): 5
Platform Type: Treadplate Platform Thickness (in.): 1/4
